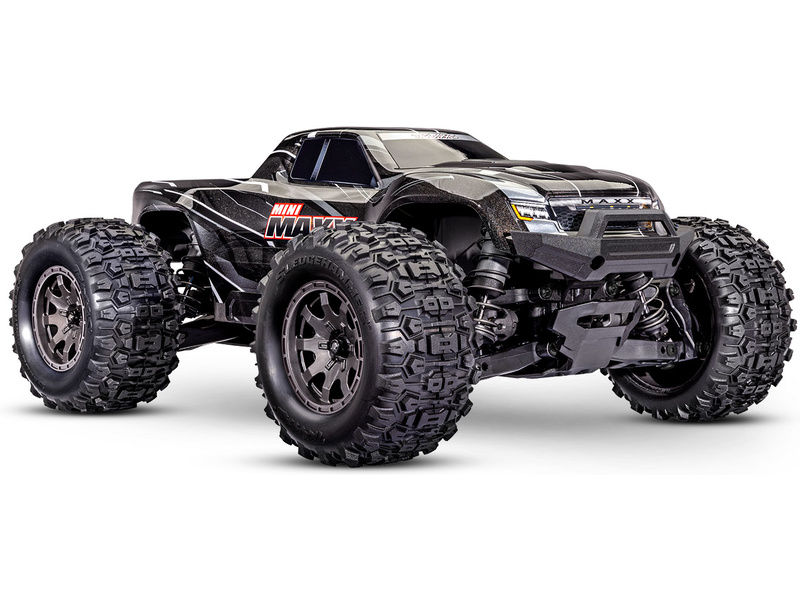

Overbuilt and over-the-top, the all-new Mini Maxx® captures the engineering, unmatched power, and extreme durability that defines Traxxas Maxx® performance. Mini Maxx is the perfect, take-anywhere size, delivering 30+ mph brushless speed and legendary Maxx toughness that slides easily into a backpack.
Features:
- 30+ mph top speed
- BL-2s™ waterproof electronic speed control
- Heat sink accepts accessory cooling fan (3340)
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection
- BL-2s™ Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
- Battery and Charger Included
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 3500 mAh for extended run time
- 2-amp USB-C charger
- iD® technology for faster, safer charging
- High-capacity 2-cell LiPo battery
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

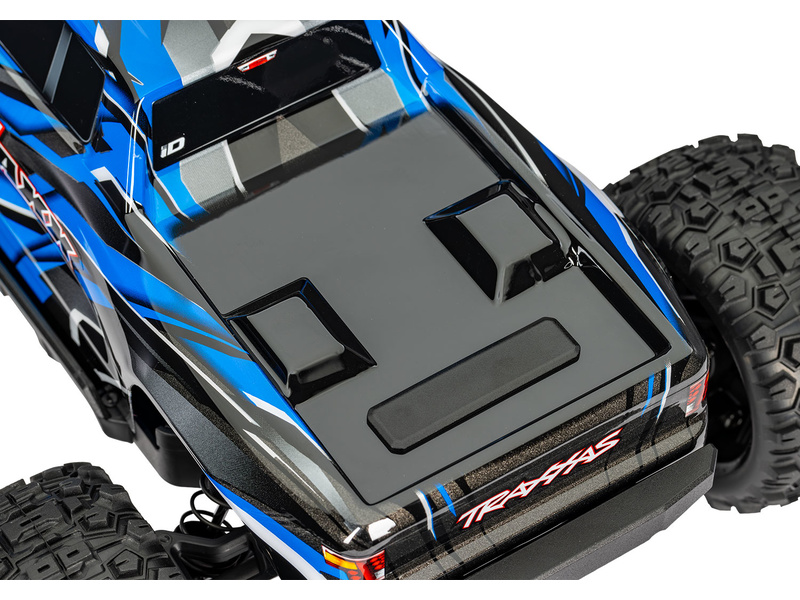

- Clipless Body Mount System
- Quick and easy installation and removal
- Nerf bar channels for side body support
- Reinforced for extra protection against tearing

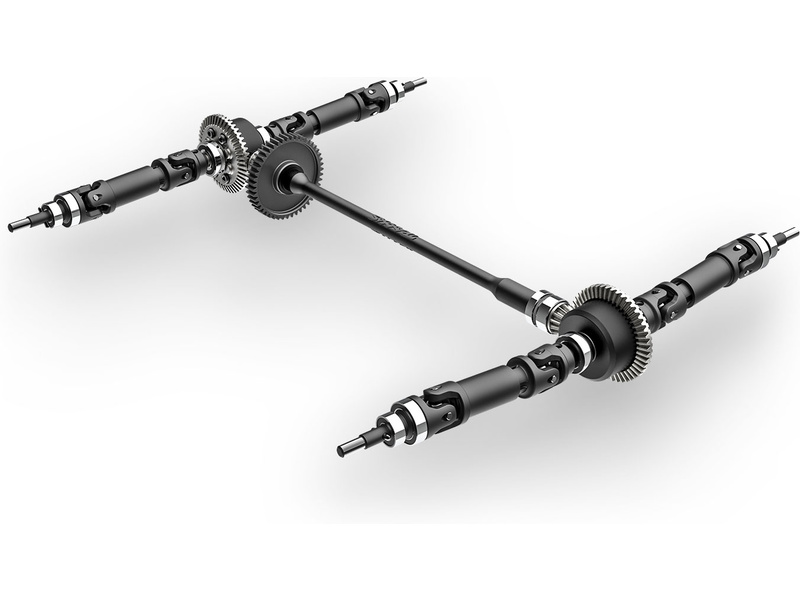

- 1/10 Scale 4X4 Drivetrain
- Full-time shaft-driven 4-wheel drive
- 1/10 scale extreme-duty telescoping driveshafts
- Direct-drive (no transmission)
- Fixed gear mesh system

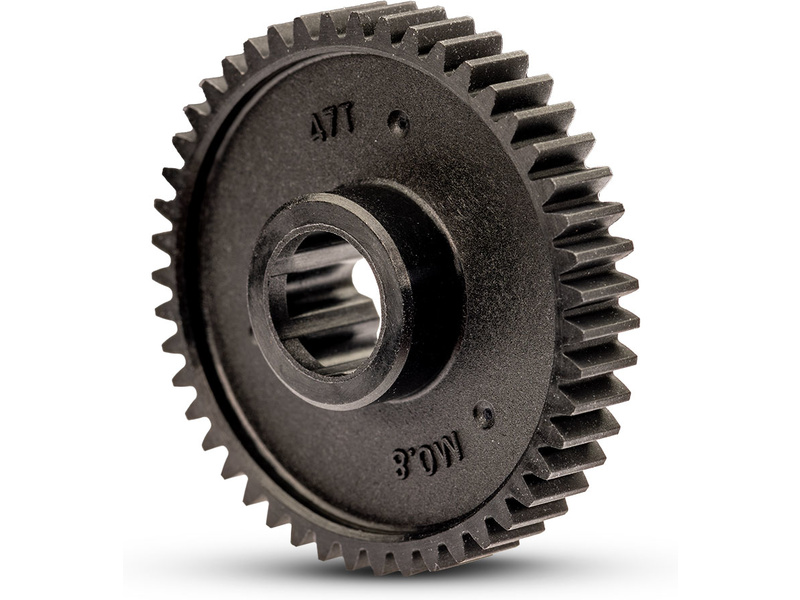

- Large 32-pitch gears
- Sealed planetary steel-gear differentials
- Fixed gear mesh system
- Modular Composite Chassis
- Modular chassis with interlocking front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt
- Easy Battery Access
- Battery is protected deep in the chassis
- Battery hold-down pivots for easy access
- More secure than conventional retention systems
- Steering
- 1/10 scale 2056 waterproof high-torque servo
- Heavy-duty double-shear bellcranks
- Cam-style servo saver
- Suspension
- Heavy-duty, double-shear suspension arms
- Dual wishbone design
- Extra tough outer suspension components
- Oil-Filled Ultra Shocks™
- Full size 1/10 scale shocks
- Large oil capacity
- Easy to tune

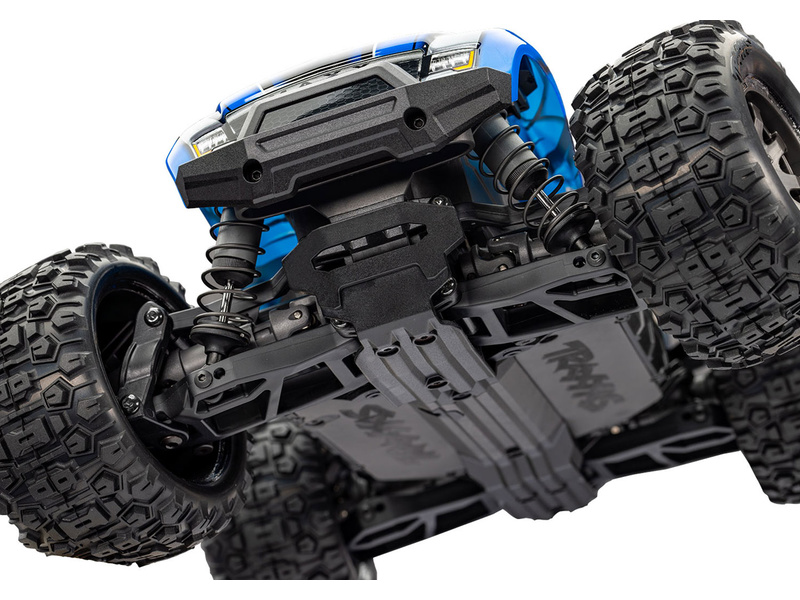

- Bumpers and Skid Plates
- Tough energy absorbing bumpers
- High-angle front skid plate
- Rugged interlocking skid plates
- Smooth undertray eliminates snags
- Integrated nerf bars for side impact resistance
- Wheels and Tires
- Dual-profile black multi-spoke wheels
- 4″ Sledgehammer® tires with foam inserts
- Wide treadblock design
- Multiple layers of biting edges
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Sealed Ball Bearings
Vehicle specifications:
| Length: | 13.58 inches (345 mm) |
|---|---|
| Front Track: | 9.94 inches (253 mm) |
| Rear Track: | 9.94 inches (253 mm) |
| Ground Clearance: | 1.06 inches (27 mm) |
| Weight: | 3.62 pounds (1.64 kg) |
| Height: | 5.39 inches (137 mm) |
| Wheelbase: | 8.66 inches (220 mm) |
| Shock Length: | 3.45 inches (88 mm) |
| Tire Diameter: | 3.93 inches (100 mm) |
| Wheel Diameter: | 2.1″ (53 mm) outer, 2.6″ (66 mm) inner |
| Speed Control: | BL-2s brushless ESC |
| Motor (electric): | BL-2s sensorless brushless (3300 Kv) |
| Transmission: | Direct-drive |
| Overall Drive Ratio: | 9.20:1 |
| Differential Type: | Planetary, steel gear |
| Gear Pitch: | 32 |
| Chassis Structure/Material: | Composite modular tub |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Double-shear bellcrank |
| Wheels & Tires: | Dual-profile wheels with pre-glued Sledgehammer® tires |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof high-torque 2056 |
| Top Speed: | 30+ mph |
| Skill Level: | 1 |
| Battery Tray: | 113 mm L x 41 mm W x 22 mm H |
| Required Batteries: | 4 “AA” (transmitter) |
Motor specifications:
| Type: | BL-2s 3300 Kv sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Connector Type: | Traxxas Quick Connect Motor Plug |
ESC specifications:
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
Video:
Includes:
- Mini Maxx Ready-To-Race monster truck
- BL-2s Brushless Power System
- 3500 mAh 2-cell LiPo battery
- 2-amp USB-C charger
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
